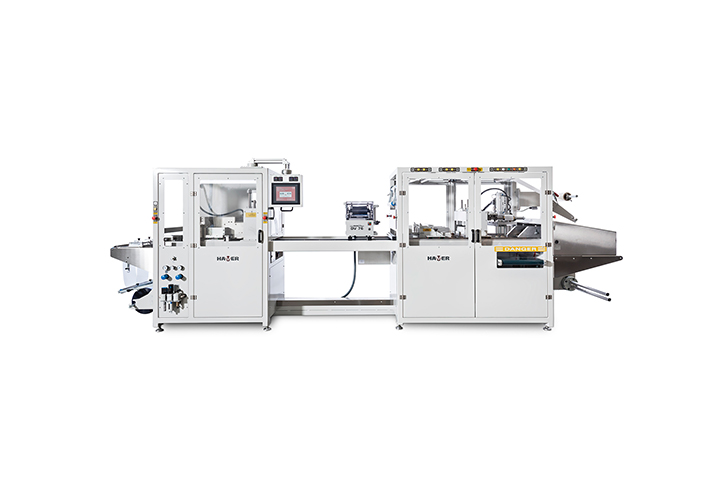

Blister packaging HM 30

The HM30 thermoformer is a compact FFS line specially designed to manufacture rigid packaging and their subsequent sterilization according to the requirements of the medical business.

Features

  • Dedicated to the production of short and medium runs.
  • Compact design and content size.
  • Pressure forming that allows the molding of film up to 0.8mm thick with precise molding.
  • Film traction by chain conveyor.
  • Low operating and maintenance cost.
  • PLC operated, touch-screen controlled.
  • Suitable for clean rooms.
  • Guarantees the packaging of medical products in accordance with GMP regulations.
  • Validable in accordance with existing medical regulations.
  • EU safety rules compliance.

Operation

The HM30 Medical integrates all the necessary operations for the manufacture of the blister according to the specifications necessary for clean rooms and validable according to specifications. The operations range from the thermoforming of the bubble from a roll, through the loading area, to the operations of sealing, individual punching of each of the figures and ejection of the finished blister.

Roll diameter forming material (max.)
400 mm
Maximum thickness of forming material
0,8 mm
Forming material width (max.)
370 mm
Forming material width (min.)
230 mm
Forming area (max.)
350 x 200 mm
Forming area (min.)
200 x 150 mm
Height of forming below material level
60 mm
Forming pressure
2 bars
Capacity of vacuum pump
40 m3/h
Length of loading area
1.000 mm
Height of loading area
950 mm
Roll diameter sealing material (max.)
400 mm
Maximum thickness of lidding material
0,15 mm
Heater installed power
8 kW
Closing force sealing press
2.960 kg
Closing force trimming press
12.000 kg
Maxim speed dry cycle
12 cycles/min.
Total installed power (at 12 cycles)
18,7 kW
Air consumption
107 m3/h
Suministro eléctrico
400V+T+N, 50 Hz

Described machine specifications may differ from final specifications of your ordered machine. Some of the equipment described or shown may be available only at extra cost.

Dimensions approx. (H x W x D)

2.000 mm x 1.300 mm x 5.700 mm

Estimated weight

2.800 kg

Application sectors

  • Pharma
  • Medical devices
  • Medical implants
