Model: Thermoforming machine FV 35R

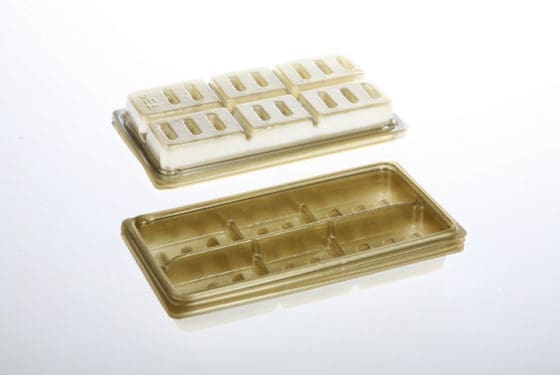

thermoforming machines FV35R muestra

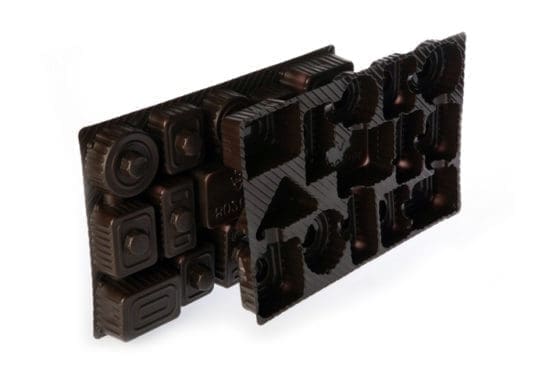

thermoforming machines FV35R muestra
thermoforming machines FV35R muestra
thermoforming machines FV35R muestra

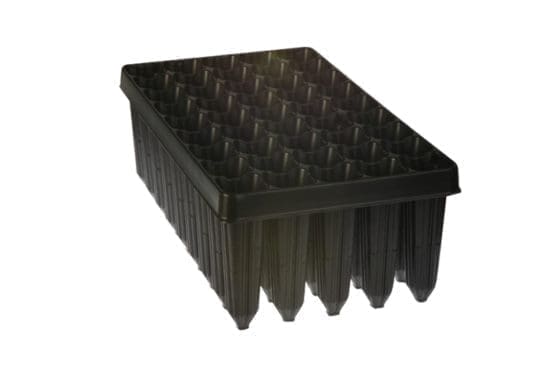

thermoforming machines FV35R muestra

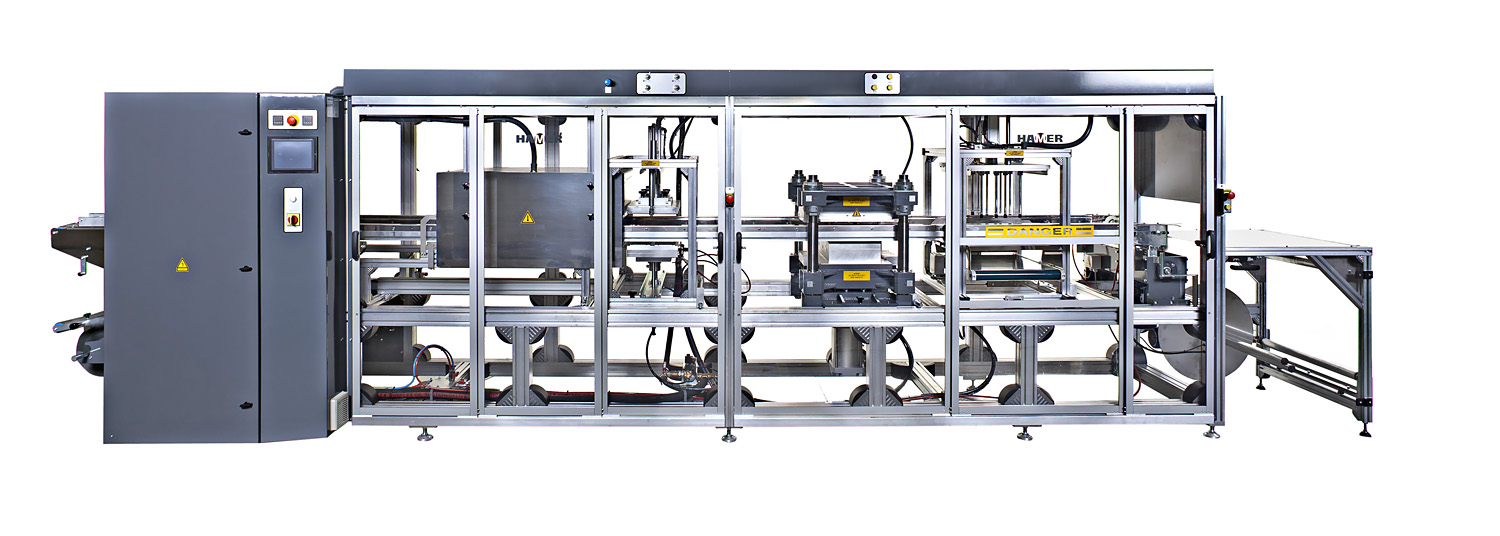

Automatic vacuum thermoforming machine with separate stations for thermoforming, die-cutting and vertical stacking of the final product in a conveyor belt.

Features

  • Dedicated to the production of medium and long runs of small pieces.
  • Working area of 500×350 mm.
  • Allows the molding of parts up to 80 mm in height (below the film line)
  • Low maintenance cost thanks to a very functional design.
  • Roll feeded.
  • Film traction by chain conveyor.
  • Film heating (patented system).
    • Fixed heater equipped with ceramic resistances and a motorized roller shutter in stainless steel that allows to regulate the area of ​​radiation.
    • It improves the initial cycle efficiency after a stop, by avoiding the overheating of the area to be molded.
    • Prevents heat dissipation, reducing electrical consumption.
  • Vertical stacking station “from top to bottom
    • Simplicity of stacking and adjusting tooling.
    • Possibility of using the same stacking tooling for different products.
    • Savings in adjustment time and tooling costs.
  • PLC operated, touch-screen controlled.
  • EU safety rules compliance.

Operation

The thermoforming machine is fed from a plastic roll. The film is heated in the heating module until it reaches the appropriate temperature depending on the type of plastic and then goes to the moulding station, cutting and finally, the pieces finishes in the vertical stacking station.

Forming film roll diameter (max.)
500 mm
Forming film thickness (max.)
0.5 mm
Forming film width (max.)
570 mm
Forming film width (min.)
330 mm
Forming area (max.)
500 x 350 mm
Forming area (min.)
300 x 200 mm
Forming depth below film line (max.)
80 mm
Forming height above film line (max.)
80 mm
Vacuum pump flow
40 m3/h
Heating power
17.2 kW
Forming tables driven by
Pneumatic
Trimming press tables driven by
Pneumatic/toggles
Trimming power
20 Tn
Dry cycle output
22 Cycles/min.
Stacker driven by
Pneumatic
Total installed power
24kW
Air consumption (at dry/cycle)
110 m3/h
Power supply
400 V+N+T, 50 Hz

Described machine specifications may differ from final specifications of your ordered machine. Some of the equipment described or shown may be available only at extra cost.
