Model: Blister packaging BPC 25H / BPC 35H

blister packaging BPC25H BPC35H
blister packaging BPC25H BPC35H
blister packaging BPC25H BPC35H
blister packaging BPC25H BPC35H
blister packaging BPC25H BPC35H
Envasadora blíster bpc23
Envasadora blíster bpc23
blister packaging BPC25H BPC35H

Automatic line machine suitable for manufacturing face-seal blister, full-sealed blister, full plastic blister and blister to blister.

Features

  • Dedicated to the production of medium and long runs.
  • Modular design through available options.
  • Robust and accessible construction.
  • Low operating and maintenance cost of the machine.
  • Quick tool set change-over.
  • PLC operated, touch-screen controlled.
  • Steel-rule die cutter, which avoids misalignment in the cut.
  • Film traction by chain conveyor.
  • Automatic card feeder.
  • Available in two sizes:
    • 350×250 mm in the case of the BPC25H.
    • 500×350 mm in the case of the BPC35H
  • •EU safety rules compliance.

The most common optional extras are:

  • Pressure forming to produce more detailed pieces.
  • Customizable length of loading area.
  • High frequency welding.
  • Dedicated printing and coding system (flexographic printers, inkjet based coders, etc)
  • Punching station for the euro-holder.
  • Possibility to manufacture a blister to blister pack.

Operation

The BPC25H / BPC35H machines integrate all operations needed to manufacture a blister package, from forming the blister, loading of the product and sealing, to trimming operations.

Dimensions approx. (H x W x D)

1.800 x 1.120 x 9.860 mm (BPC 25H) - 1.800 x 1.320 x10.660 mm (BPC 35H)

Estimated weight

2.500 Kg (BPC 25H) - 3.500 Kg (BPC 35H)

BPC 25H

BPC 35H

Forming film roll diameter (max.)
500 mm (800 mm optional)
Forming film thickness (max.)
0.5 mm (1 mm optional)
Forming film width (max.)
400 mm ( model BPC 25H )
570 mm ( model BPC 35H )
Sealing film width (max.)
370 mm ( model BPC 25H )
540 mm ( model BPC 35H )
Forming area (max.)
350x250 mm ( model BPC 25H )
500x350 mm ( model BPC 35H )
Forming area (min.)
230x100 mm ( model BPC 25H )
300x100 mm ( model BPC 35H )
Forming depth below film line (max.)
80 mm
Vacuum pump flow
21 m3/h ( model BPC 25H )
40 m3/h ( model BPC 35H )
Heating power
9,2 kW ( model BPC 25H )
17,2 kW ( model BPC 35H )
Sealing film roll diameter (max.)
400 mm
Loading area length
2.000 mm
Loading area height
950 mm
Sealing force
5000 Kg ( model BPC 25H )
7.500 Kg ( model BPC 35H )
Die-cutting force
7.500 Kg ( model BPC 25H )
12.000 Kg ( model BPC 35H )
Cycle speed (dry conditions)
30 cycles/min
Total installed power
21,72 kW ( model BPC 25H )
32,22 kW ( model BPC 35H )
Total air consumption (dry cycle)
102 m3/h ( model BPC 25H )
150 m3/h ( model BPC 35H )
Power supply
400 V+T+N, 50 Hz

Described machine specifications may differ from final specifications of your ordered machine. Some of the equipment described or shown may be available only at extra cost.

Application sectors

  • DIY
  • Home decor
  • Lighting
  • Office supplies
  • Consumer Electronics
  • Hardware supplies
  • Toys
  • Cosmetics and Beauty
  • Personal care
  • Automotion
  • Household products
  • Childhood products
  • Batteries

Related products

Blister packaging BPC 23

Envasadora blíster bpc23

More info

Blister packaging BPC 25M / BPC 35M

Envasadora blíster BPC25M BPC35M

More info

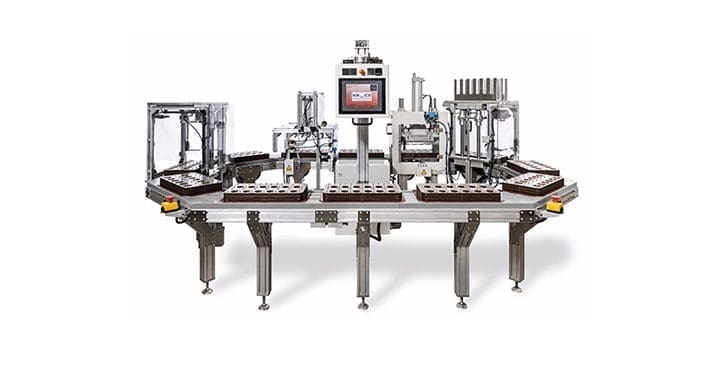

Sealing machine HC 63
